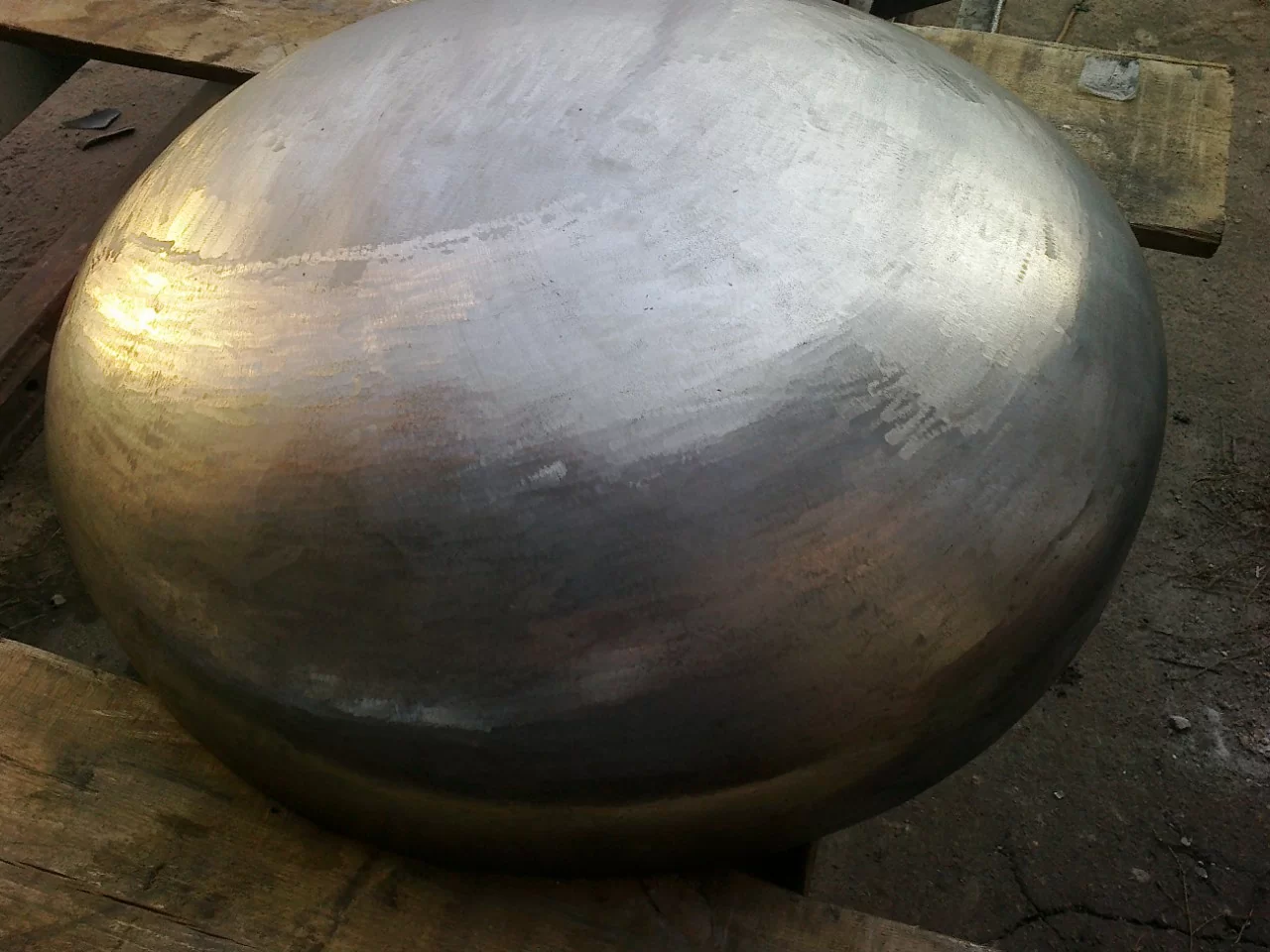

Pipe fittings are important part of any pipeline system applied in different spheres. Fiitings works in a system for control over the flow. Steel  end caps are mainly used as a plug in order to cover the end of pipe. The caps are produced in different sizes and shapes to comply with different sizes of pipes ends. Our company offers different steel end caps covered with 2-3-monolayer PE/PP coatings for external and internal surfaces.

Specification for buttweld carbon steel end caps ASTM A234

Dimentions: ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Sizes: 1/2″ up to 48″

Type: Seamless/Welded/ERW/Fabricated

Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160 etc.

Before coating, caps are applied with shortblusting  for removal of scales, corrosion and other muds.

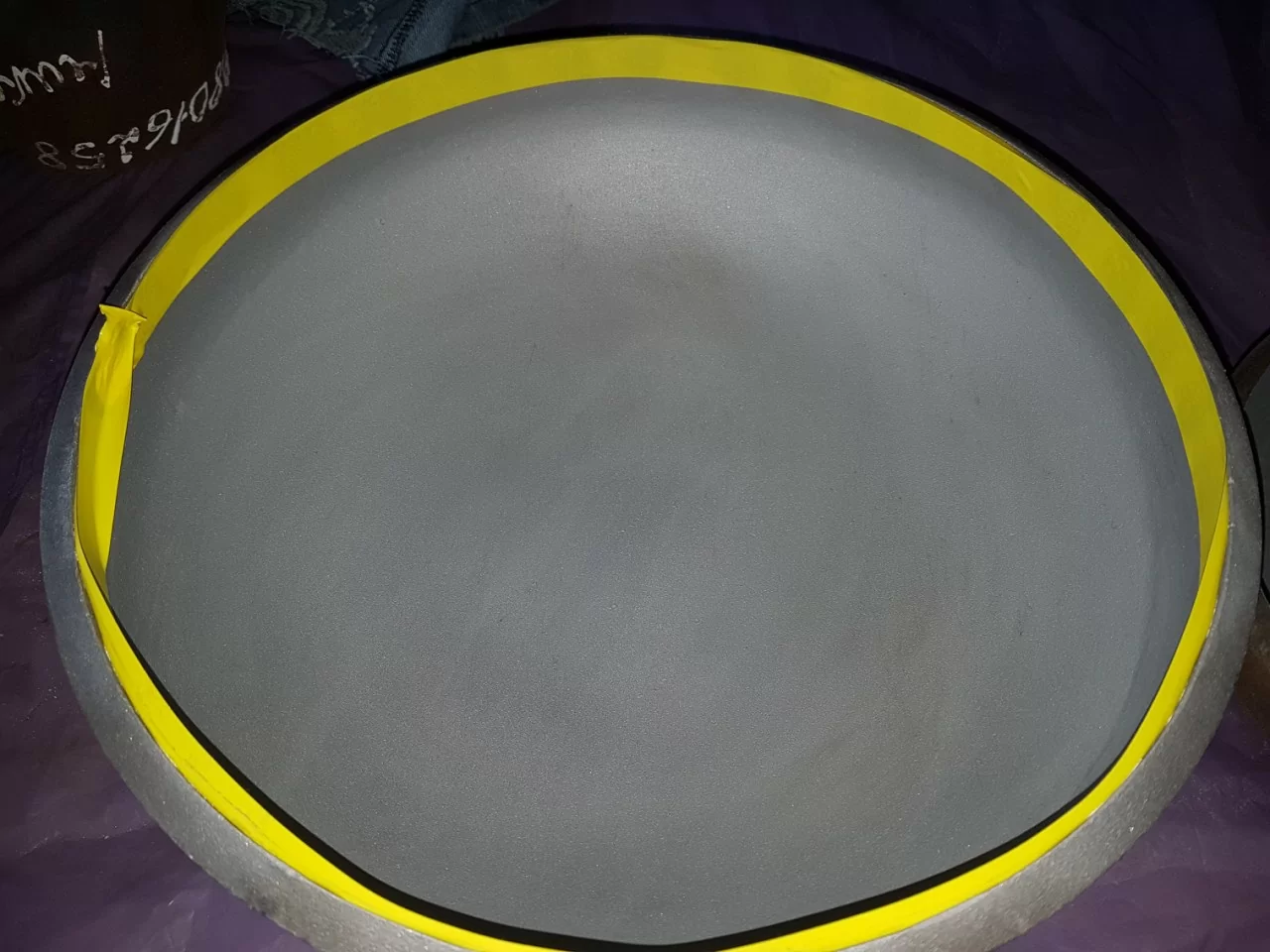

Internal coating(reinforced type) of buttweld carbon end caps ASTM A234 EN 10253-2

-Cement mortar (polymeric) lining

-Anticorrosive polymeric epoxy coating

-by PE/PP monolayer coating with methods of surface lining, electrostatic spaying, bush inserting

External coating (reinforced type) of buttweld carbon caps ASTM A234 EN 10253-2

-Anticorrosive coating by heat-shrinkable tape ANTICORTERMO

-Polymeric tape Polylen, Polyken

-by means of extruded PE/PP mono-2-3-5-7 layer coating

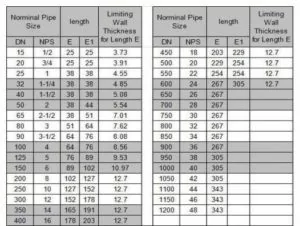

Table for steel end caps dimensions
