Buttweld Carbon Steel Elbows Astm A234 En 10253-2 Coated With Mono- 2- 3 Layer Extruded PE/PP

52.31 $ pcs. (УКР)

Ціна з ПДВ

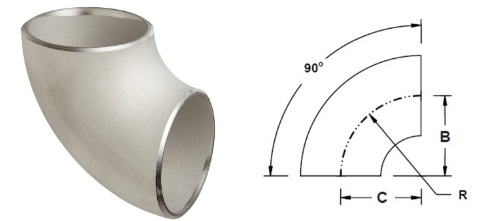

Elbows or bends are commonly used part of any pipeline system. They are used to change the direction of transported fluid. ASTM A234 WPB elbows commonly have 90° grade degree for long radius, but there are also 45°, 180° grade elbows.

Уточнить наличие
  • Reliability in everything

    Customers are confident both in our equipment and in our company.

  • Customers in the spotlight

    Our solutions and services are adapted to customer requirements, the needs and requirements of which are the basis of these solutions.

  • The latest technology

    Thanks to the continuous development of new products, processes and technologies, only the best solutions are provided to customers.


Elbows or bends are commonly used part of any pipeline system. They are used to change the direction of transported fluid. ASTM A234 WPB elbows commonly have 90° grade degree for long radius, but there are also 45°, 180° grade elbows.

There are also short radius (SR) elbows, they have sharper curves and shorter bends, they are perfectly fit in compact places.

Standard: ASME B16.9, SH3408, HG/T21635 / 21631, SY/T0510

Diameter: DN20 to DN1500/ 3/4” to 60”

Schedule: Sch 20, STD, 40, XS, 80, 100, 120, 160, XXS

Radius: Short Radius (SR) and Long Radius (LR)

Type: Seamless and Welded

Before coating, elbows are applied with shortblusting  for removal of scales, corrosion and other muds.

INTERNAL COATING(REINFORCED TYPE) OF BUTTWELD CARBON ELBOWS ASTM A234 EN 10253-2

-Cement mortar (polymeric) lining

-Anticorrosive polymeric epoxy coating

-by PE/PP monolayer coating with methods of surface lining, electrostatic spaying, bush inserting

EXTERNAL COATING (REINFORCED TYPE) OF BUTTWELD CARBON ELBOWS ASTM A234 EN 10253-2

-Anticorrosive coating by heat-shrinkable tape ANTICORTERMO

-Polymeric tape Polylen, Polyken

-by means of extruded PE/PP mono-2-3-5-7 layer coating

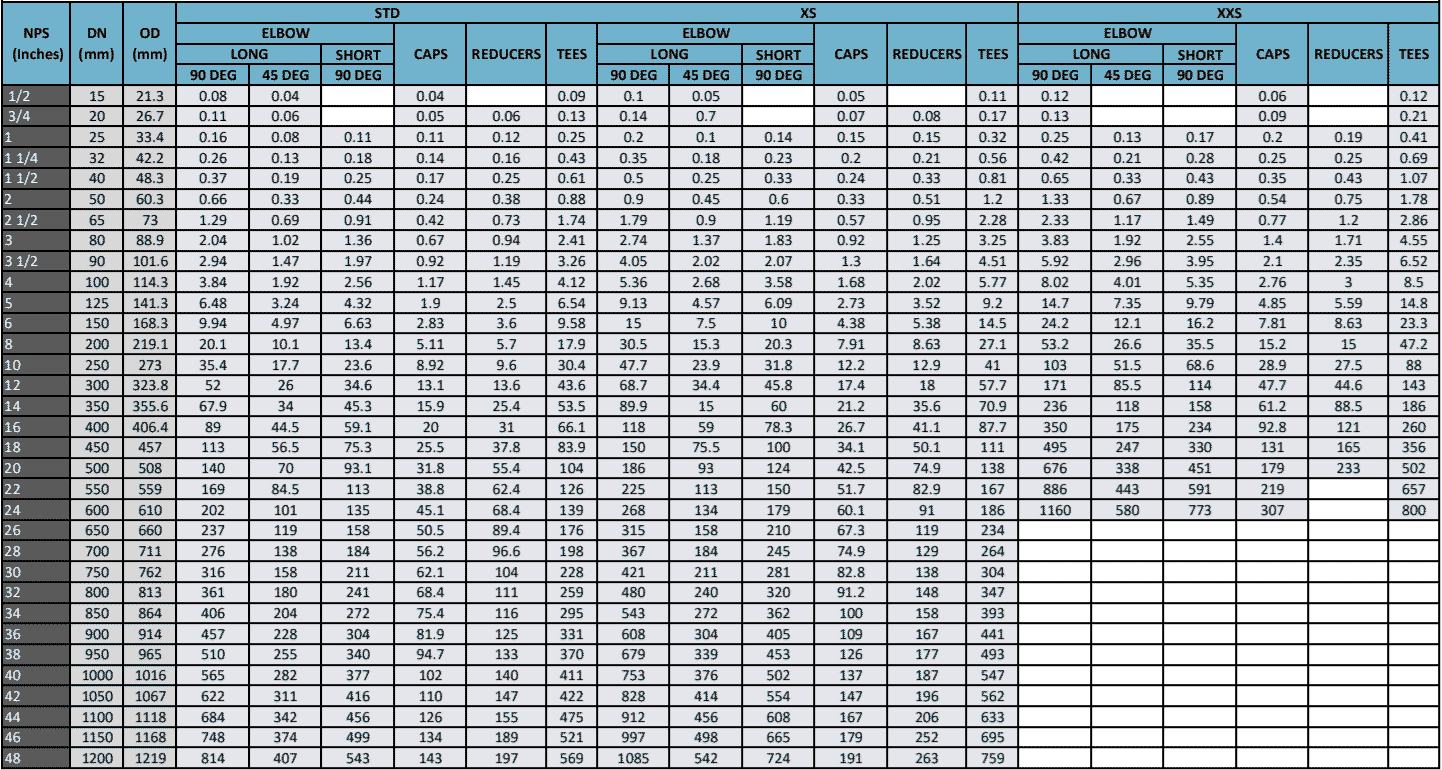

Table for steel elbows dimensions:
