Electromagnetic Inductor With Air Cooling System

2210.56 $ (УКР)

Ціна з ПДВ

Electric unit heaters  (Electromagnetic inductor)

The system is very effective without sophisticated water cooling systems. Only forced air cooling! Our company projects heating units in accordance with clients specifications and then puts the unit into production.

Уточнить наличие
  • Reliability in everything

    Customers are confident both in our equipment and in our company.

  • Customers in the spotlight

    Our solutions and services are adapted to customer requirements, the needs and requirements of which are the basis of these solutions.

  • The latest technology

    Thanks to the continuous development of new products, processes and technologies, only the best solutions are provided to customers.


Electric unit heaters  (Electromagnetic inductor)

The price of such units are much lower than prices for other heating units!

The system is very effective without sophisticated water cooling systems. Only forced air cooling!

Our company projects heating units in accordance with clients specifications and then puts the unit into production.

Production time 1 – 2  months.

Heating inductors are rather applied for steel, ferrous long components with close loop in cross section (pipes, rods, bars etc.) However the components at cross section can be round, oval, square, polyangular or any close looped shape.

Units of induction heating are very effective for such continuous technological processes as insulation(coating) paiting, lamination, drying of wet surfaces before their cleaning etc.

Construction features.

Inductor heating units can be 1-2-3-4 etc sectional, depending upon specification and features of technologicla process. For example, the work assignment to apply 2-layer coating (1-st step -apply the first layer onto preheated surface, and then apply the second layer upon dried first layer with the following drying. In this case, we use 3 -sectional heating inductor.

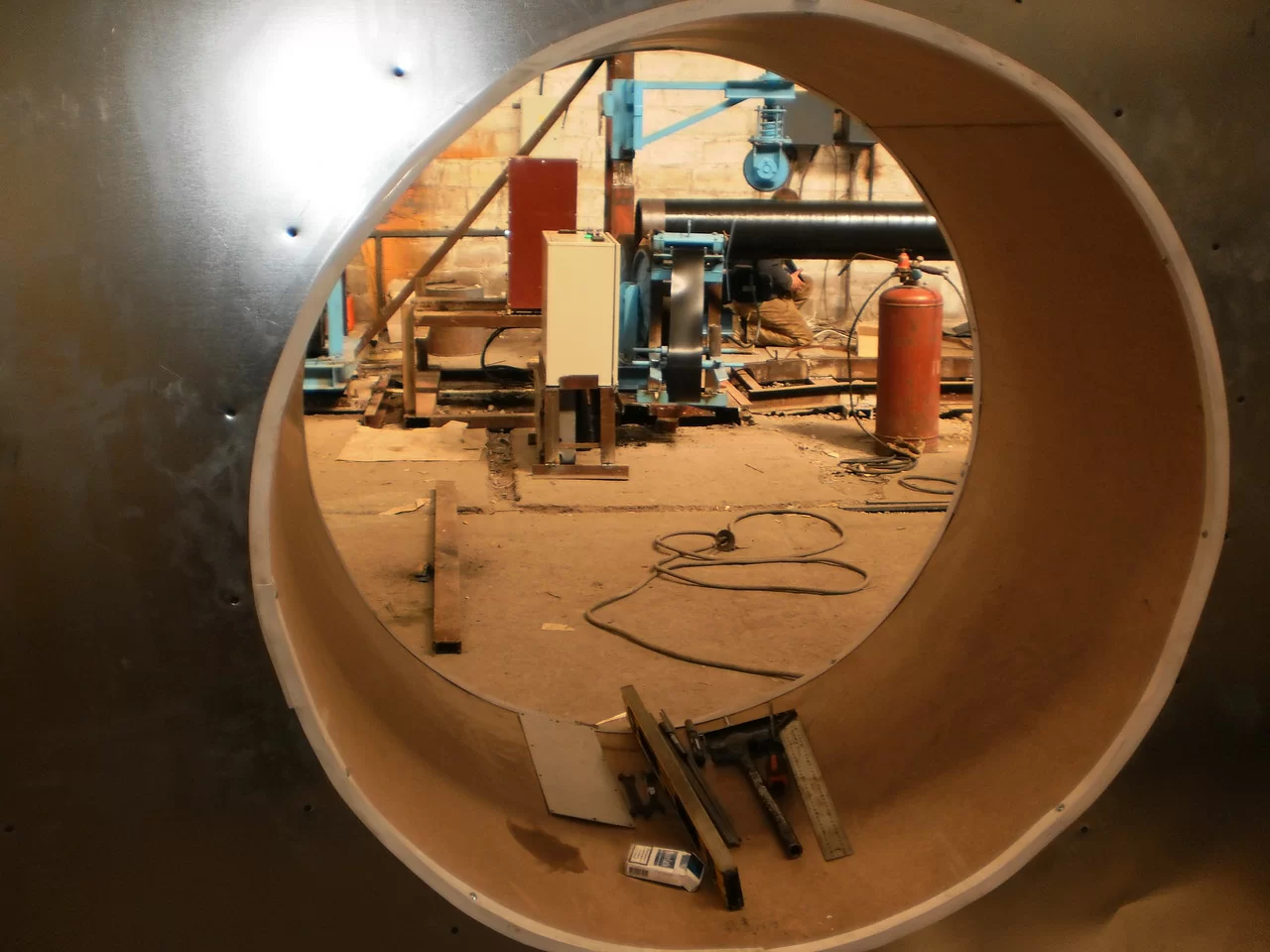

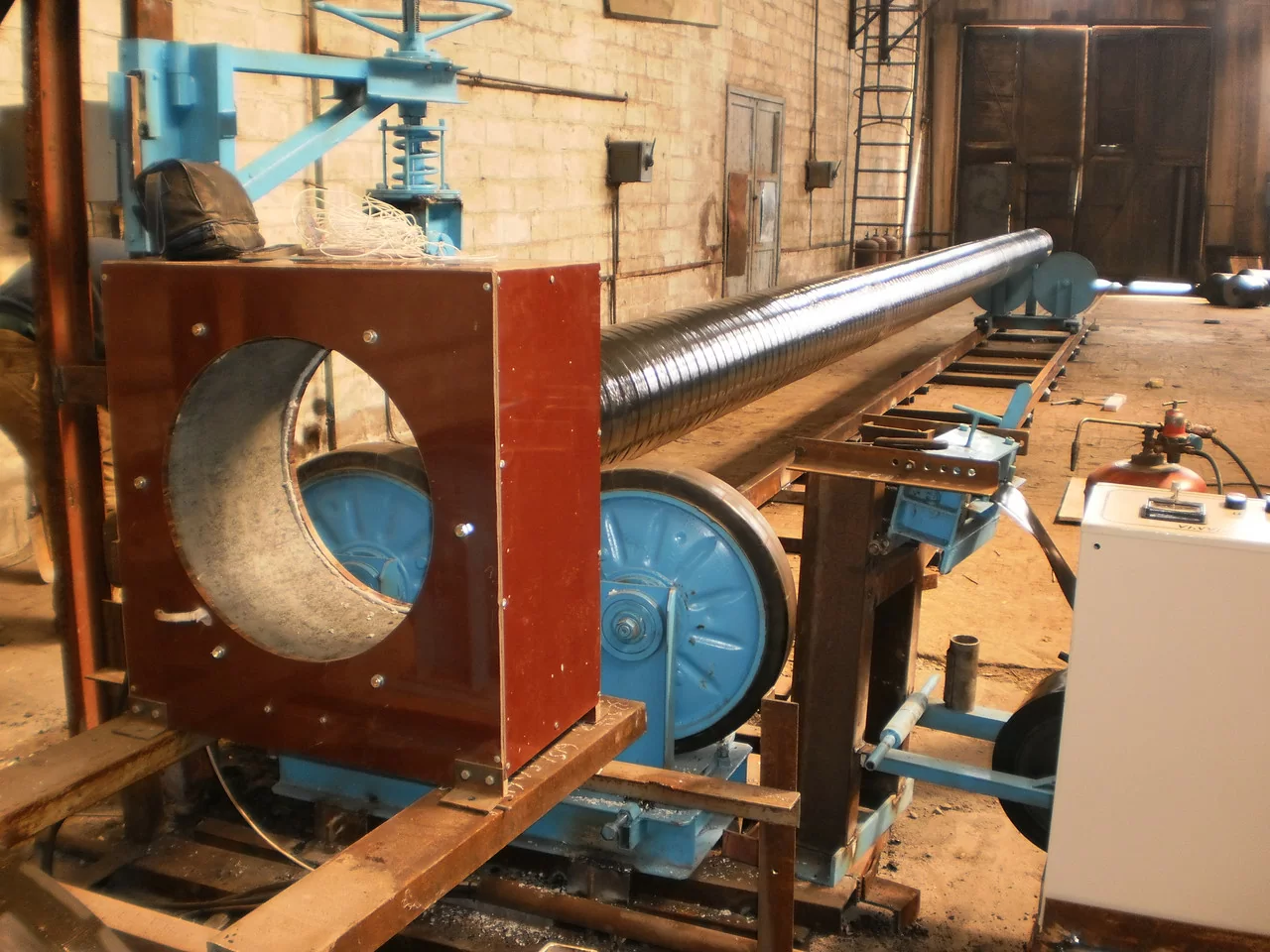

Индуктор промышленной частоты для нагрева труб в диапазоне 108..377мм двухсекционный регулируемой мощностью

Induction heating units can be supplied along with automatic temperature control units. Temperature control for each heating unit is available.

Techical characteristics of induction heating units:

diameters of heated  items, mm 1 – 2000

power, kWt                                  0.1 – 1000

heating temperature, °С               1 – 400.

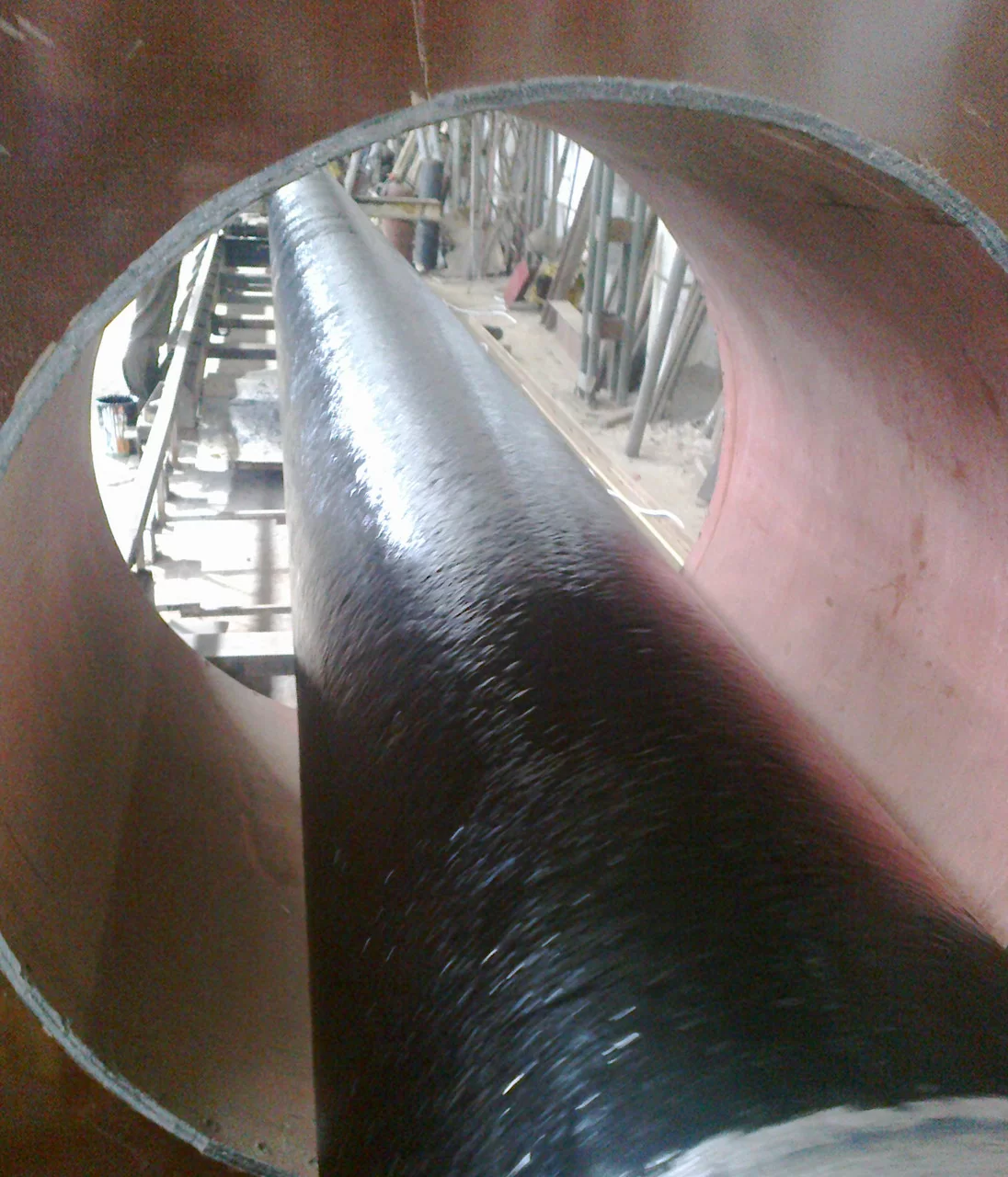

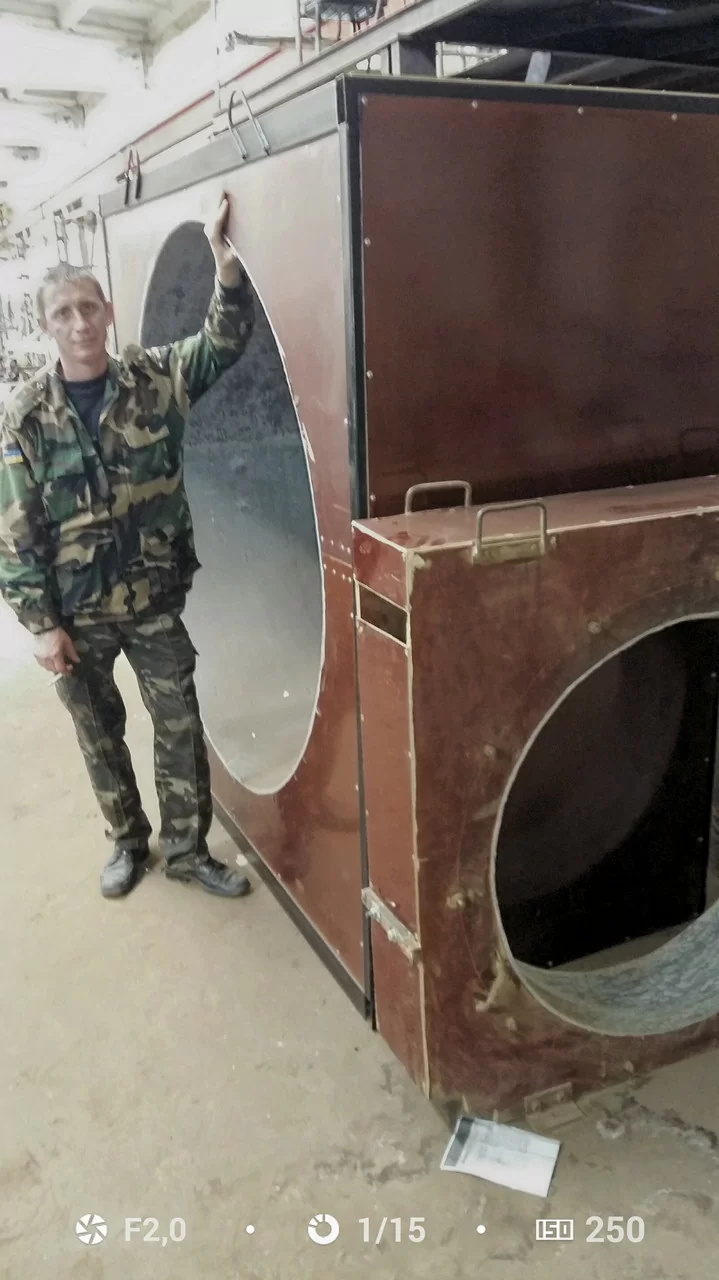

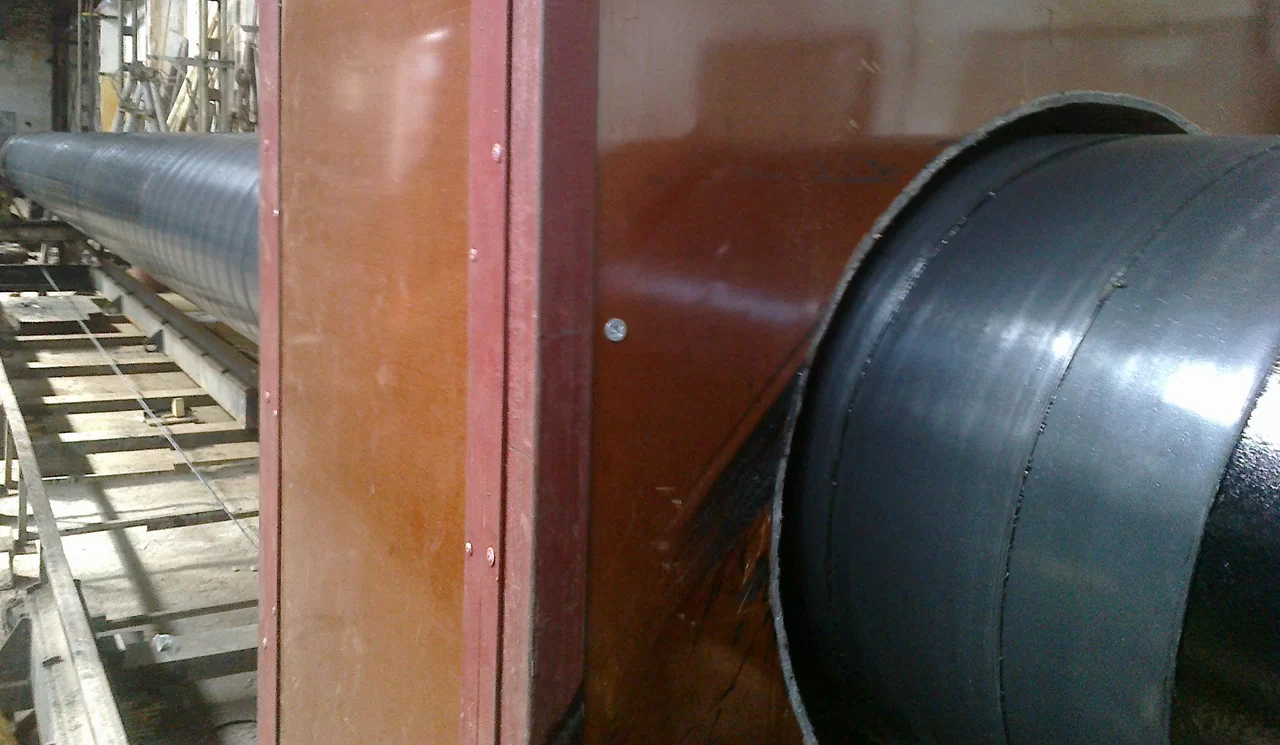

Индуктори промчастоты 50 Гц для нагрева под изоляцию стальных труб Дм. 820мм. и Дн 1420мм. односекционные с регулировкой по току (мощности)



  • Certitificate of Quality Management System SIC.MS.040 ISO9001.1002 dated 04.09.2019.

    Certificate ISO 14001: 2015 of environmental management system (SIC.MS.001.ISO14001.1288)
