Buttweld Carbon Steel Crosses Astm A234 En 10253-2 Coated With Mono- 2- 3 Layer Extruded PE/PP

61.02 $ pcs. (УКР)

Ціна з ПДВ

Carbon steel crosses are widely used for interconnected piping systems. According to the diameters, they are divided into 2 types: equal and unaqual.

ANSI/ASME B16.9 Buttweld Pipe Cross Specification – Equal Cross, Reducing Cross
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Outside Diameter Equal Cross ( 1/2″~24″), ERW / Buttweld Equal Cross(1/2″~48″), Reducing Cross ( 1/2″~24″), ERW / Buttweld Reducing Cross(1/2″~48″)

Уточнить наличие
  • Reliability in everything

    Customers are confident both in our equipment and in our company.

  • Customers in the spotlight

    Our solutions and services are adapted to customer requirements, the needs and requirements of which are the basis of these solutions.

  • The latest technology

    Thanks to the continuous development of new products, processes and technologies, only the best solutions are provided to customers.

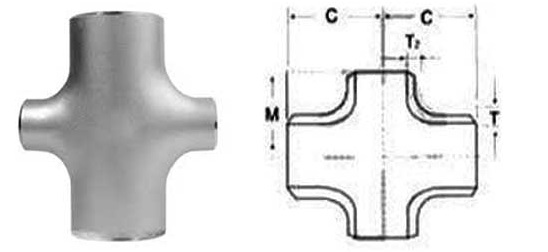

Carbon steel crosses, commonly know as 4-way fittings are widely used for interconnected piping systems. According to the diameters, they are divided into 2 types: equal and unaqual.

Equal cross has 4 points with the same diameter, while unequal cross has its points with different diameters.

Specification:

ANSI/ASME B16.9 Buttweld Pipe Cross Specification – Equal Cross, Reducing Cross
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Outside Diameter Equal Cross ( 1/2″~24″), ERW / Buttweld Equal Cross(1/2″~48″), Reducing Cross ( 1/2″~24″), ERW / Buttweld Reducing Cross(1/2″~48″)
Types Equal Cross, Reducing Cross
Wall Thickness 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Before coating, crosses are applied with shortblusting  for removal of scales, corrosion and other muds.

INTERNAL COATING(REINFORCED TYPE) OF BUTTWELD CARBON STEEL CROSSES ASTM A234 EN 10253-2

-Cement mortar (polymeric) lining

-Anticorrosive polymeric epoxy coating

-by PE/PP monolayer coating with methods of surface lining, electrostatic spaying, bush inserting

EXTERNAL COATING (REINFORCED TYPE) OF BUTTWELD CARBON STEEL

CROSSES ASTM A234 EN 10253-2

-Anticorrosive coating by heat-shrinkable tape ANTICORTERMO

-Polymeric tape Polylen, Polyken

-by means of extruded PE/PP mono-2-3-5-7 layer coating





  • Certitificate of Quality Management System SIC.MS.040 ISO9001.1002 dated 04.09.2019.

    Certificate ISO 14001: 2015 of environmental management system (SIC.MS.001.ISO14001.1288)
